A Component-Level Teardown of a Qualcomm-Centered Midrange Smartphone
The Trump T1 arrived with a conspicuous identity: gold finish, political branding, and a promise of American assembly. Beneath that exterior, however, the more technically interesting story is one of platform integration. Our teardown shows a conventional midrange Android architecture built around Qualcomm’s SM7550-AB, the Snapdragon 7 Gen 3 system-on-chip, with supporting Qualcomm components extending into power management, cellular communications, and portions of the radio-frequency front end.
Nothing about that architecture is radical, but that is part of what makes the phone useful to examine. Contemporary smartphones rarely emerge from a blank sheet of paper. They combine mature processor platforms, globally sourced subassemblies, specialized camera modules, and tightly constrained board layouts into a finished commercial product.
Bottomline: The T1 is best understood as a capable midrange implementation built around an established Qualcomm platform. Its most distinctive feature is not a novel circuit architecture, but the branding and assembly story wrapped around a familiar Qualcomm-centered hardware platform.
Opening the Trump T1 Retail Box

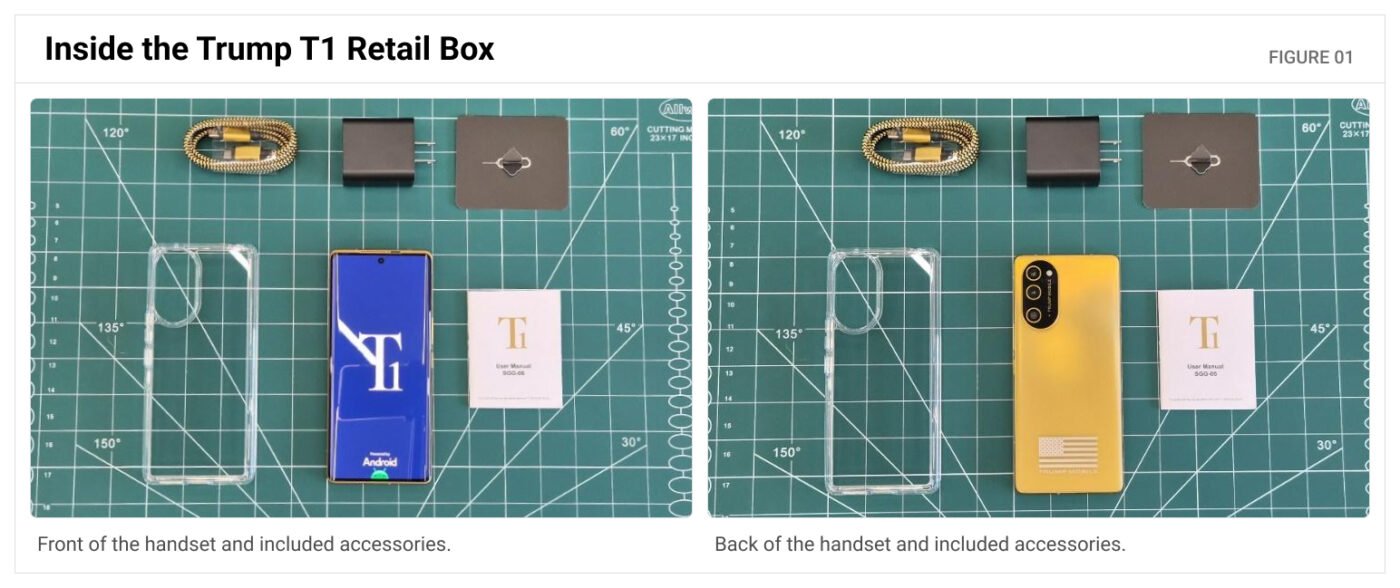

A teardown begins before the first screw is removed. The retail package establishes the commercial product being examined: the gold handset, its T1 branding, and the included accessories. Those details define the device’s market identity, but they say little about the architecture underneath.
That contrast is useful. Smartphone exteriors are designed to differentiate products immediately, while the internal engineering is governed by thermal limits, antenna behavior, component availability, mechanical tolerances, and the economics of established platforms.
Teardown Scope and Evidence

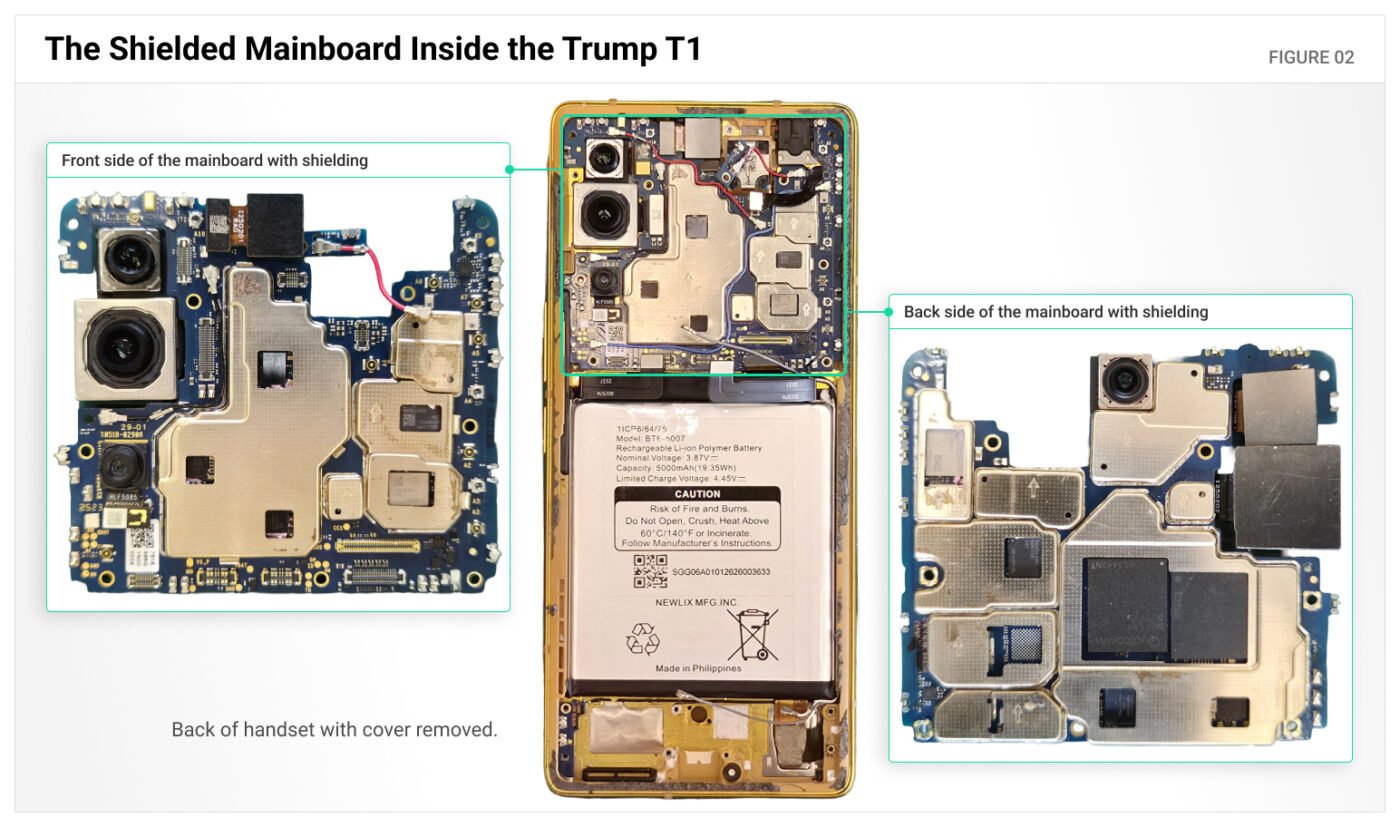

The phone was disassembled to expose its rear housing, NFC and inductive-charging assembly, battery, mainboard, camera modules, and major integrated circuits. We reviewed visible package markings and component placement on both sides of the board.
This is a component-level teardown, not a full electrical characterization. A readable package marking is direct physical evidence. A component’s location and surrounding circuitry can support an architectural interpretation. Advertised performance, sensor resolution, charging speed, software enablement, and country of origin require separate documentation or testing.
Sensors, Connectivity, and Platform Support
At the user level, the T1 offers the expected capabilities of a contemporary midrange Android phone. Its OLED touch display provides the primary input surface, while an under-display optical fingerprint sensor supports biometric unlocking. Motion and orientation functions are handled by the usual combination of accelerometer, gyroscope, and magnetometer. Proximity and ambient-light sensors manage in-call screen behavior and automatic brightness.
The Snapdragon 7 Gen 3 supports multi-constellation GNSS, including GPS, GLONASS, BeiDou, and Galileo. The teardown separately identified NFC hardware in the rear assembly. Platform support and physical presence do not, by themselves, establish that every optional function is enabled in software or exposed to users.
The Trump T1 Mainboard: Snapdragon 7 Gen 3

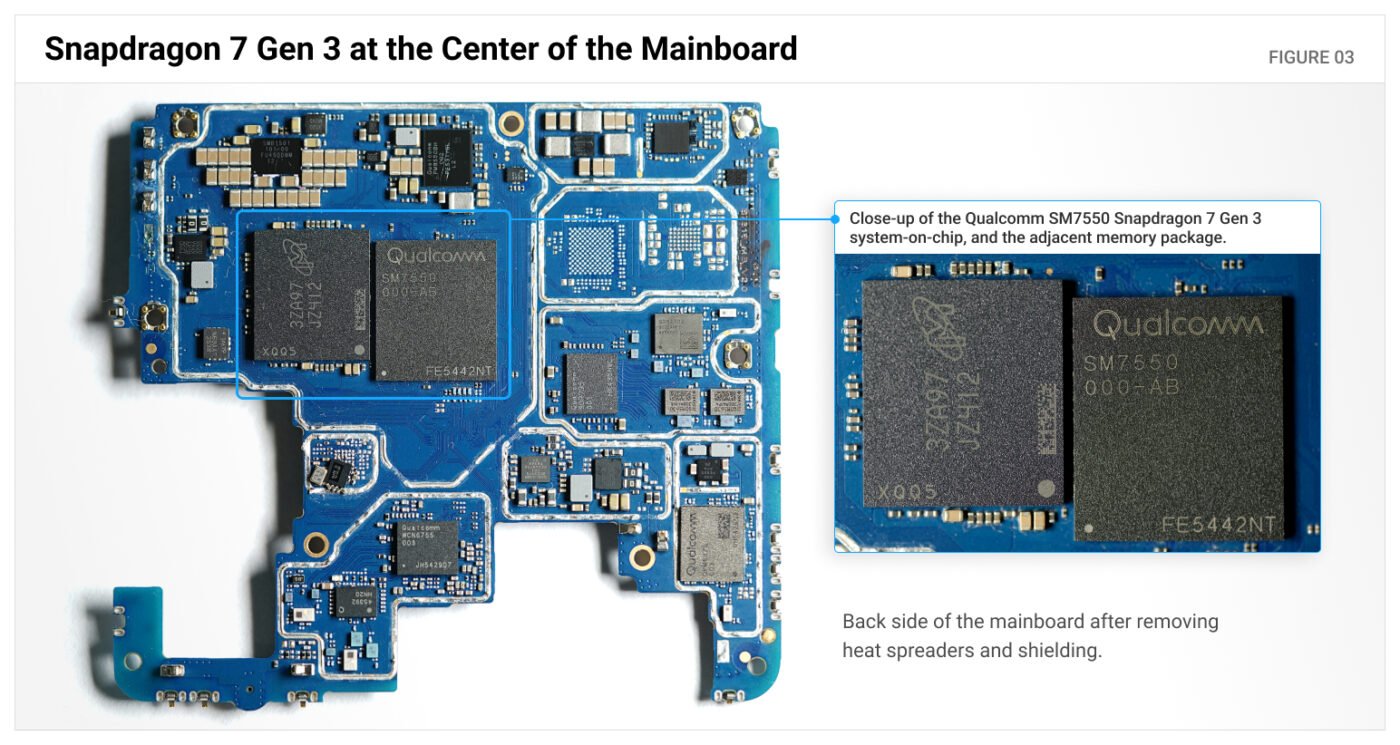

The main processor is marked SM7550-AB, Qualcomm’s part number for the Snapdragon 7 Gen 3 mobile platform. It uses a 1+3+4 CPU configuration: one prime core at up to 2.63 GHz, three performance cores at up to 2.4 GHz, and four efficiency cores at up to 1.8 GHz. Qualcomm pairs those CPU resources with an Adreno GPU and manufactures the platform on a 4-nanometer process.
In practical terms, this is a balanced midrange system-on-chip. It is designed to deliver smooth everyday multitasking, high-refresh-rate display support, mainstream gaming, and modern camera processing without the cost or power profile of a current flagship processor.
On-Device AI and Image Processing
The Snapdragon 7 Gen 3 includes Qualcomm’s Hexagon neural processing unit, including INT4 precision support. Qualcomm positions the architecture for power-efficient on-device workloads such as image enhancement, voice features, translation, and context-aware processing. The platform’s Spectra triple image signal processor can process three camera streams concurrently and supports still-image capture at resolutions up to 200 megapixels, subject to the camera configuration selected by the handset manufacturer.
Those are platform capabilities, not a claim that every theoretical Snapdragon feature is implemented in the T1. The important architectural point is that the phone’s principal compute, AI, graphics, and image-processing functions are consolidated within one Qualcomm platform.
Power Delivery and Multi-PMIC Qualcomm Design

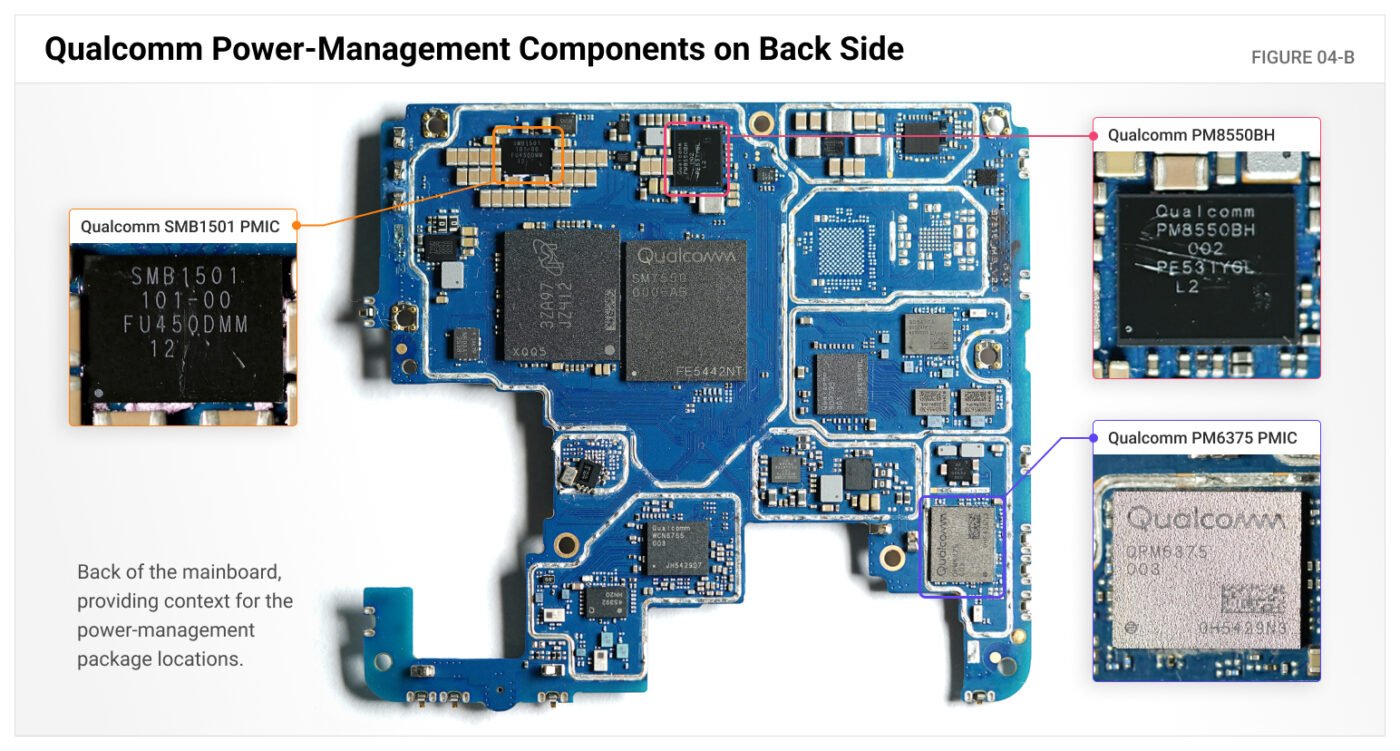

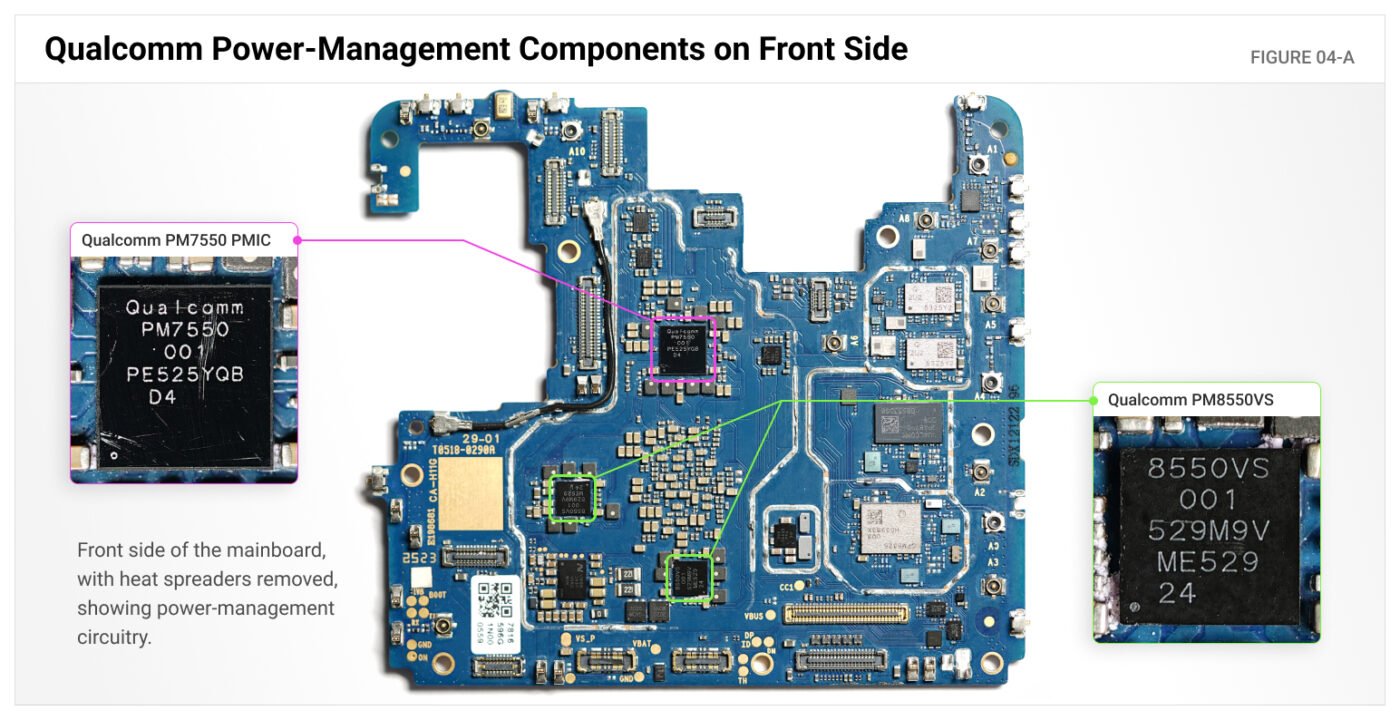

Power delivery is distributed across several power-management integrated circuits, or PMICs. These devices generate and sequence the voltage rails required by the processor, memory, display, cameras, radio circuitry, and other peripherals. The board layout follows the logic of a mature Snapdragon implementation: instead of one monolithic power chip, several coordinated devices divide the electrical load and serve different subsystems.
The visible packages include Qualcomm-branded PMICs and related power components. This concentration of Qualcomm silicon reduces integration risk for the handset designer because the processor, power architecture, modem, transceiver, and portions of the RF front end are designed to work as a platform.
Cellular Radio and RF Front End

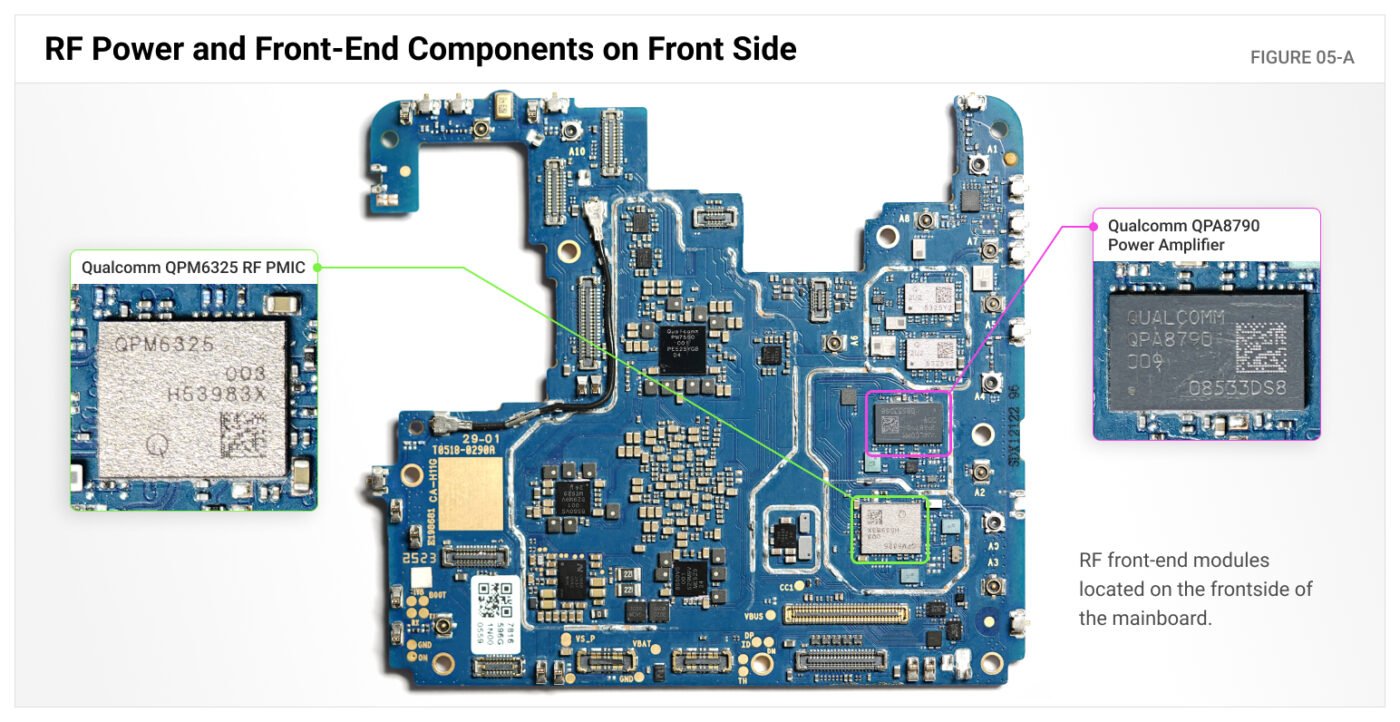

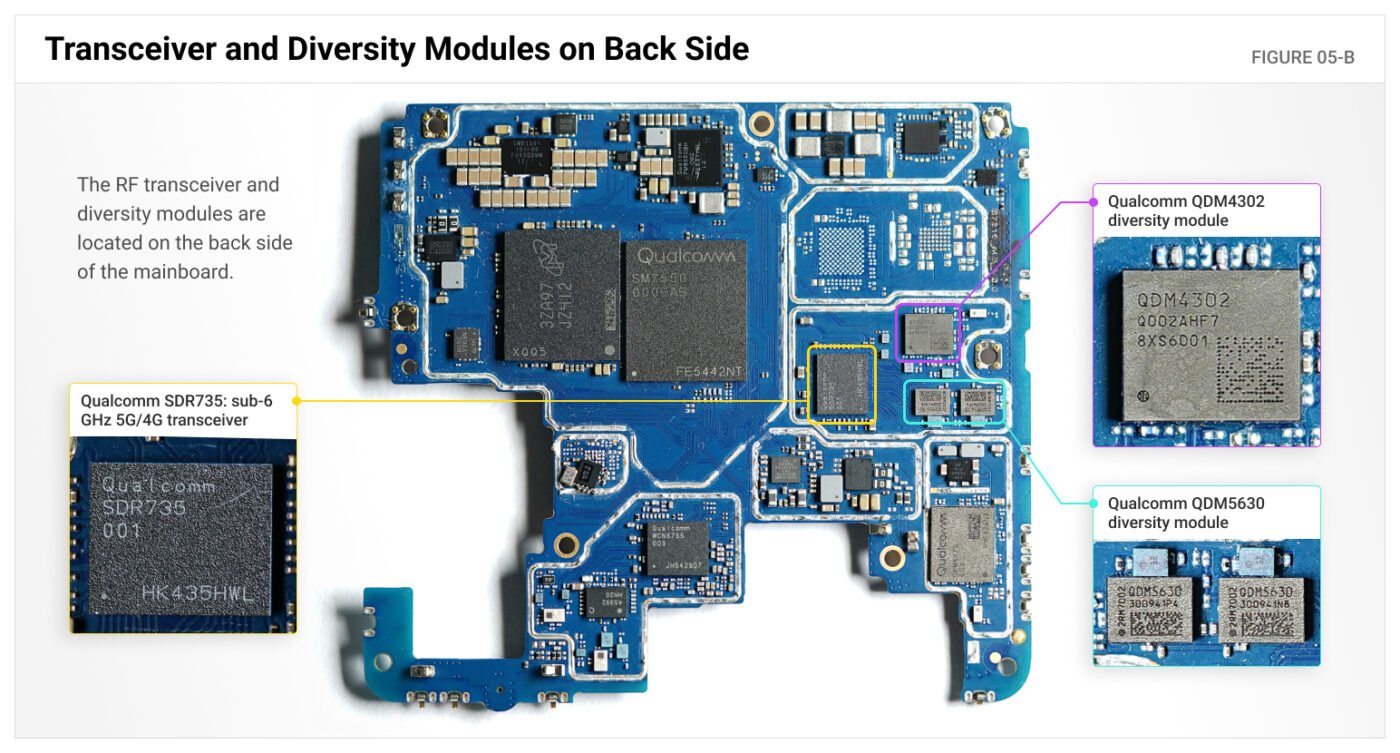

Qualcomm’s role continues into the cellular chain. The handset uses Qualcomm transceiver and diversity-module components, while additional front-end modules provide signal amplification, filtering, switching, and antenna routing. Together, those devices bridge the digital modem functions of the Snapdragon platform and the analog radio signals transmitted and received by the phone’s antennas.
This section of a smartphone is especially sensitive to layout. RF performance depends not only on the component selection but also on trace geometry, shielding, grounding, antenna tuning, and the mechanical relationship between the board and enclosure. The T1’s compact RF implementation again looks like a mature, highly integrated design rather than a ground-up radio architecture.
Camera Modules and the Image Pipeline

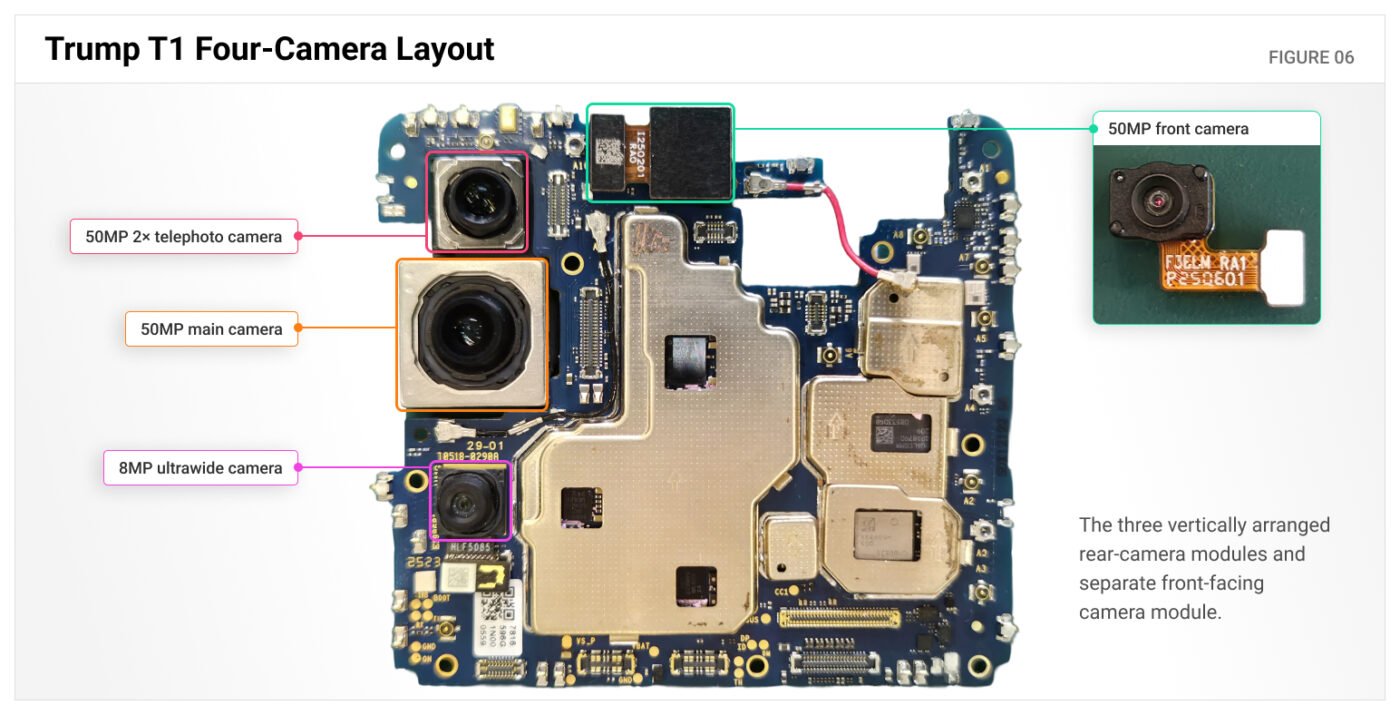

The T1 contains three rear camera modules and one front-facing camera. The draft product configuration identifies a 50-megapixel main camera, a 50-megapixel telephoto camera with 2× optical zoom, an 8-megapixel ultrawide camera, and a 50-megapixel selfie camera. The physical teardown confirms the four-module arrangement; sensor resolution and lens behavior are specifications that should be treated separately from what package photographs alone can prove.
Image processing is handled by the Snapdragon platform’s Spectra ISP. The integrated approach allows exposure, focus, color, noise reduction, HDR processing, and multi-camera transitions to be coordinated by the main system-on-chip.
Battery, NFC, and Wireless-Power Hardware
The battery is labeled STE-5007 and rated at 5,000 mAh, or 19.35 Wh. The label identifies Newlix Mfg. Inc. and the Philippines. Wired charging is limited to 30 W over USB-C.

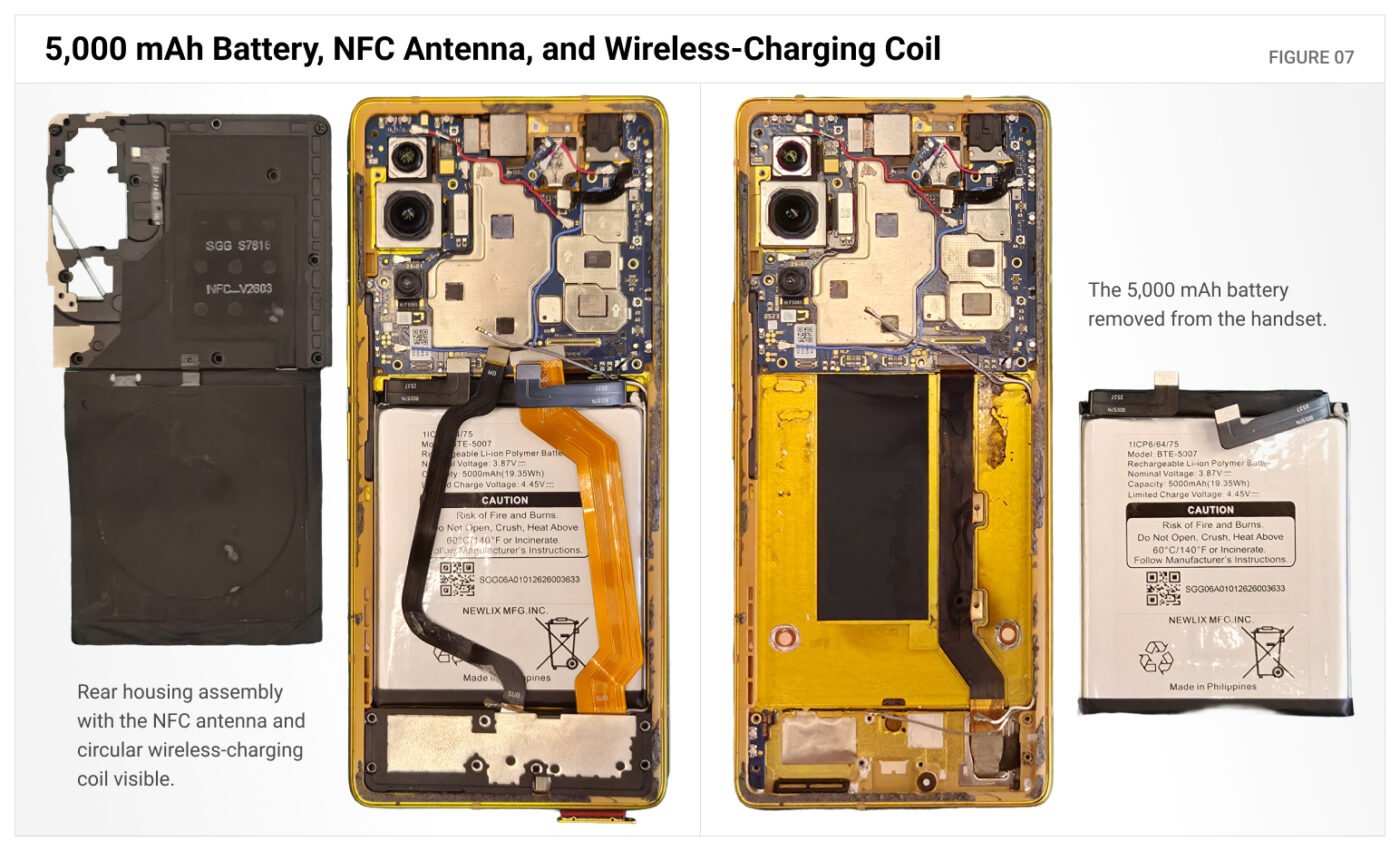

The rear assembly also contains an NFC antenna and a circular inductive-charging coil. The coil is physical evidence that the hardware can support Qi-style wireless power transfer. However, hardware presence and commercial feature enablement are different questions. If wireless charging is absent from the published feature list or disabled in software, the teardown alone cannot establish when—or whether—it will be enabled for end users.
Systems-Level Findings from the Trump T1 Teardown
From a hardware-engineering perspective, the T1’s defining characteristic is platform reuse. Its processor, AI accelerator, image pipeline, power architecture, cellular transceiver, and several RF components all come from Qualcomm’s ecosystem. That is not unusual; modern smartphone development rewards the use of validated reference designs and tightly integrated supplier platforms.
The teardown therefore supports three broader conclusions:
- The T1 is a conventional midrange device, not a new flagship-class hardware architecture.
- Qualcomm supplies much more than the application processor: its components span compute, power management, cellular transceiver functions, and parts of the RF front end.
- Final assembly and component origin are separate issues. The internal photographs show a globally sourced set of sophisticated subassemblies; they do not, by themselves, establish the legal or commercial meaning of any country-of-origin claim.
Assembly, Component Origin, and Evidentiary Limits
The retail story surrounding the T1 has emphasized the United States. From an engineering standpoint, it is useful to be precise about what that can mean. Smartphone production is a chain: semiconductor fabrication, package assembly, printed-circuit-board manufacture, camera and display production, battery manufacture, enclosure fabrication, software integration, testing, and final assembly may all occur in different places.
A company can perform meaningful final assembly in the United States without having domestically manufactured the processors, memory, display, cameras, RF modules, battery, or board. Conversely, the use of imported components does not prove that no U.S. assembly occurred. Determining origin requires supply-chain records and a defined legal standard—not visual inspection alone.
Our Final Hardware Assessment of the Trump T1
Inside the gold enclosure, the Trump T1 is a fairly ordinary midrange smartphone—and that is precisely why the teardown is informative. It shows how much of a modern handset’s identity can change while the underlying engineering remains anchored to a proven platform.
The Snapdragon 7 Gen 3 provides a capable foundation. The multi-camera system, 5,000 mAh battery, NFC hardware, wireless-charging coil, and integrated Qualcomm radio and power architecture give the device the feature set expected in its class. At the same time, the component choices offer little evidence of a distinct new hardware design.
The more interesting question is therefore not whether the T1 contains competent technology. It does. The question is how branding, final assembly, supplier integration, and product positioning combine to create a supposedly new device from a familiar technical foundation. On that point, the circuit boards tell a clearer story than the gold finish.
